SIZES : ½” to 60”
CLASS : 150 to 2500
TYPE : Weld Neck, Blind, Slip-On, Long Weld Neck
FITTINGS : Elbow, Tee, Reducing Tee, Spectacle Blind, Paddle blanks, Paddle Spacer
STANDARD : ASME B16.5, B16.47, B16.48, MSS-SP, B16.9



BASE MATERIALS :

• Carbon Steel: ASTM A105, A516 Gr.70, A350 LF2, A694 F52–F65
• Low Alloy Steel: A182 F5, F9, F11, F22



CLADDING MATERIAL OPTIONS :

• Stainless Steel: SS304, SS316, SS321, SS347
• Nickel Alloys: Inconel 625, Inconel 825, Monel 400, Hastelloy C276
• Duplex & Super Duplex: F51, F53, F55

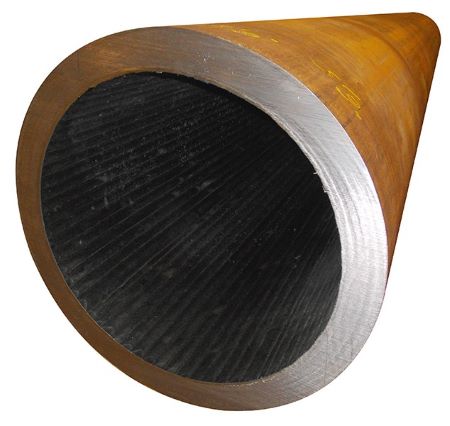

Hunter Steel Flanges offers a complete range of Cladded Fittings, Flanges, and Pipes designed to deliver corrosion resistance, mechanical strength, and cost efficiency in demanding service conditions. Our products are manufactured by applying a corrosion-resistant alloy (CRA) layer over carbon steel or low alloy steel base materials using advanced weld overlay or explosion bonding techniques.

These cladded components are ideal for offshore platforms, refineries, petrochemical units, and other critical process systems where exposure to harsh chemicals, seawater, sour gases, or high-temperature fluids demands superior corrosion protection without compromising structural strength.

Our cladded elbows, tees, spectacle blinds, Paddle blanks, Paddle spacers, and flanges comply with international standards and undergo stringent quality testing to ensure reliable performance in high-pressure and high-temperature environments.



Key Features :

• Corrosion resistance at a reduced cost compared to solid alloy
• Strong mechanical integrity of carbon/low alloy steel base
• Wide selection of CRA materials to match fluid conditions
• Available in all standard sizes, classes, and thicknesses
• Custom configurations and cladding thicknesses on request

SIZES : 12” to 72”

SCHEDULE : S10, S20, S30, S40, S STD, S60, S XS, S80, S100, S120, S140, S160, S XXS, UPTO 100MM

STANDARD : API | ASTM | DIN | EN | AS PER CLIENT DRAWING

MATERIAL GRADE :

• API 5L PSL 1 & PSL 2 (Grade B TO X65)
• ASTM A53 Grade B / ASTM A106 Grade B
• ASTM A333 Grade 6
• ASTM A516 Grade 60, Grade 65, Grade 70
• ASTM A671 CC60, CC65, CC70
• ASTM A335 P5, P9, P11, P22, P91
• ASTM A691 1-1/4CR, 2-1/4CR, 5CR, 9CR, 91
• ASTM A312/358 304L, 316L, TO 904L

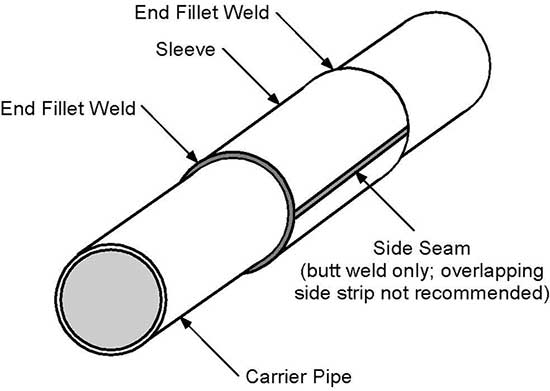

HUNTER STEEL manufactures Insert sleeve also known as pipe sleeve in sizes from 12” to 72”. HUNTER STEEL markets its product with the trademark name HUNTER STEEL SLEEVE. HUNTER STEEL specializes in manufacturing custom made Pipe Insert Sleeve which can be used in place of reducers to join to different diameter pipes.

•
•

The insert sleeve/pipe sleeve has a major advantage due to its easy-fabrication and fast assembly. Pipe sleeve/ insert sleeve do not require any special equipment for installation and are a cheaper resource as transportation of the sleeve is an easy process.
Pipe Sleeve/ Insert Sleeve are used for various industries & applications. Few of the them are mentioned below.

APPLICATIONS : -

• Injection and re-injection
• Crude oil gathering
• Highly corrosive gas piping
• Potable & Waste Water
• Jet Fuel transfer
• Fire Water & Salt Water piping
• Offshore water injection line
• Water injection line
• Water supply pipeline
• Tubular material collection
• Gas application
• Transport formation water
• Re-injection lines
• Very aggressive water disposal system
• Potable water
• Desalinated supply water for growth
• Refinery & Petrochemical Project
• Pipeline Replacement Project
• Sea line Replacement Project
• Offshore Pipeline Replacement Project

•
•

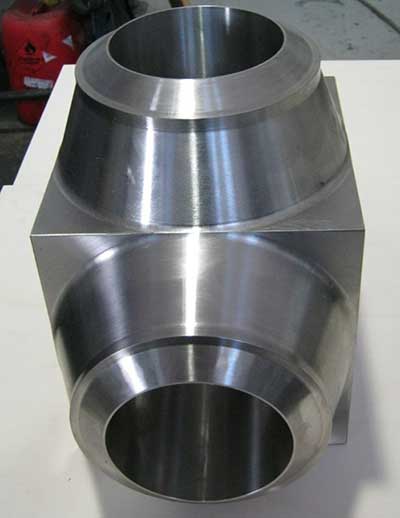

SIZES : ½” to 6”

SCHEDULE : S10, S20, S30, S40, S STD, S60, S XS, S80, S100, S120, S140, S160, S XXS

STANDARD : API | ASTM | DIN | EN

MATERIAL GRADE : Incoloy (800, 800H, 800 HT, 825), Alloy 20; Hastelloy (C22, C276); Cupronickel Cu-Ni; Monel 400; Inconel (600, 625); Titanium (Gr. 1, 2, 3); Urea Grade; Duplex -Super Duplex F51, F53, F55, F44; Stainless steel (AISI 304, 316, 321, 347); Alloy steel (AISI Gr.1, Gr.5, Gr.9, Gr.91, Gr.11, Gr.22); Carbon steel (ASTM 105, A516/70, A350 LF2, A694 F60-65)

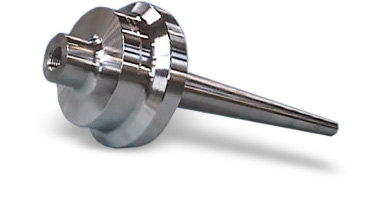

THERMOWELL / INJECTION QUILL

Injection Quill Applications : Inject chemicals such as de-waxing, de-icing or de-foaming agents into the process stream.

Sampling Probes : Allows a small process sample to be removed for evaluation under full system pressure.

Dimensions : The overall quill length, defined in mm from the tip to directly below the flange face and pipe schedule of the quill as per requirement.

Bore Sizes : Determined by the through bore of the DBB valve that has 10mm, 14mm or 20mm as standard

Materials : 316 SS, LF2 Carbon Steel, Duplex, Super Duplex, Hastelloy, 6Mo, Monel, Incoloy 600, Inconel 800.

Quill profiles : The profile of the end of the quill/probe can be manufactured to suit the application.
